Leisure Battery Mounting in a Fiat Ducato: Options Guide
Leisure Battery Mounting in a Fiat Ducato: Options Guide is one of the most searched topics among campervan and motorhome owners, and with good reason. Getting your battery setup right underpins everything else in your 12V system. This guide gives you clear, actionable steps based on real-world practice, tailored specifically to Fiat Ducato layouts.
Before You Start
Understanding your current setup is the first step. Check whether you have a lead acid, AGM, or lithium (LiFePO4) battery, as the procedures differ. The Mestic MLB-100 Smart (100Ah lithium with built-in BMS and app control) and MLB-300 Smart (300Ah) are LiFePO4 chemistry, which has specific charging requirements that differ from older battery types.

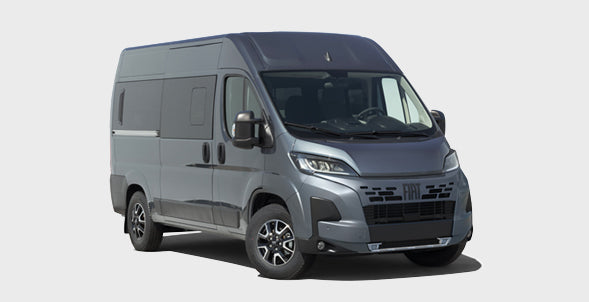

When working in a Fiat Ducato (also shared with Peugeot Boxer and Citroën Relay), it is important to consider common mounting locations. Many Ducato-based conversions position the leisure battery beneath a seat, within a designated battery compartment, or in a rear storage or garage area. These vans often offer more space than smaller conversions, making them suitable for higher-capacity battery setups.
Gather the right tools and materials before you begin. For most battery work you will need a multimeter, appropriately rated cables and fuses, cable crimps or terminals, and basic hand tools. Never work on battery systems with rings or metal watches on, and always disconnect the negative terminal first when removing a battery.
The Process Explained
Start with a clear plan of what you want to achieve. Draw a simple wiring diagram showing your battery, fuse box, charge sources (solar, alternator, hook-up charger), and loads. This prevents mistakes and makes future troubleshooting much easier. Label every cable at both ends.
For a standard leisure battery installation in a Fiat Ducato, the sequence is: mount the battery securely in your chosen location, connect the negative cable to a common chassis ground point, install an isolation switch on the positive cable, then connect the positive through an appropriate fuse to your distribution panel.
If installing within a seat base or compartment, ensure sufficient airflow and access. For rear or garage installations, ensure the battery is firmly secured and protected from movement during travel. The Mestic MLB-100 Smart at 100Ah is suitable for many builds, while larger motorhome-style setups may require higher-capacity options.
Testing and Verification
After completing any battery work, test before finalising the installation. Use a multimeter to check voltage at the battery terminals and at each connection point. A fully charged LiFePO4 battery reads approximately 13.4V, while a fully charged AGM reads around 12.8V. Any significant voltage drop between the battery and a connection point indicates a poor crimp, loose terminal, or undersized cable.
If you have installed the Mestic MLB-100 Smart or MLB-300 Smart, open the Mestic App and verify that cell voltages are balanced and the BMS is reporting normal status. This provides a reliable baseline for ongoing monitoring.
Final Thoughts
Taking the time to install a leisure battery correctly in a Fiat Ducato ensures reliable performance, improved safety, and long-term usability. A well-installed system will support your full campervan or motorhome setup and reduce the risk of electrical issues.
