How to Set Up and Charge a Leisure Battery in Your Caravan
Setting up and charging a leisure battery properly is one of the most important jobs in any caravan or campervan build. Get it right and your 12V system runs reliably for years. Get it wrong and you face flat batteries, blown fuses and potentially dangerous wiring. This guide covers everything from choosing the right battery to connecting your charge sources.
Choosing the Right Leisure Battery
The first decision is battery chemistry. Lead acid and AGM batteries are cheaper upfront but heavier, shorter-lived and less efficient. LiFePO4 lithium batteries cost more initially but deliver 2,000 to 5,000 charge cycles compared to 300 to 500 for AGM, accept charge faster, weigh roughly half as much, and give you 80 to 90 percent usable capacity versus 50 percent for lead acid.

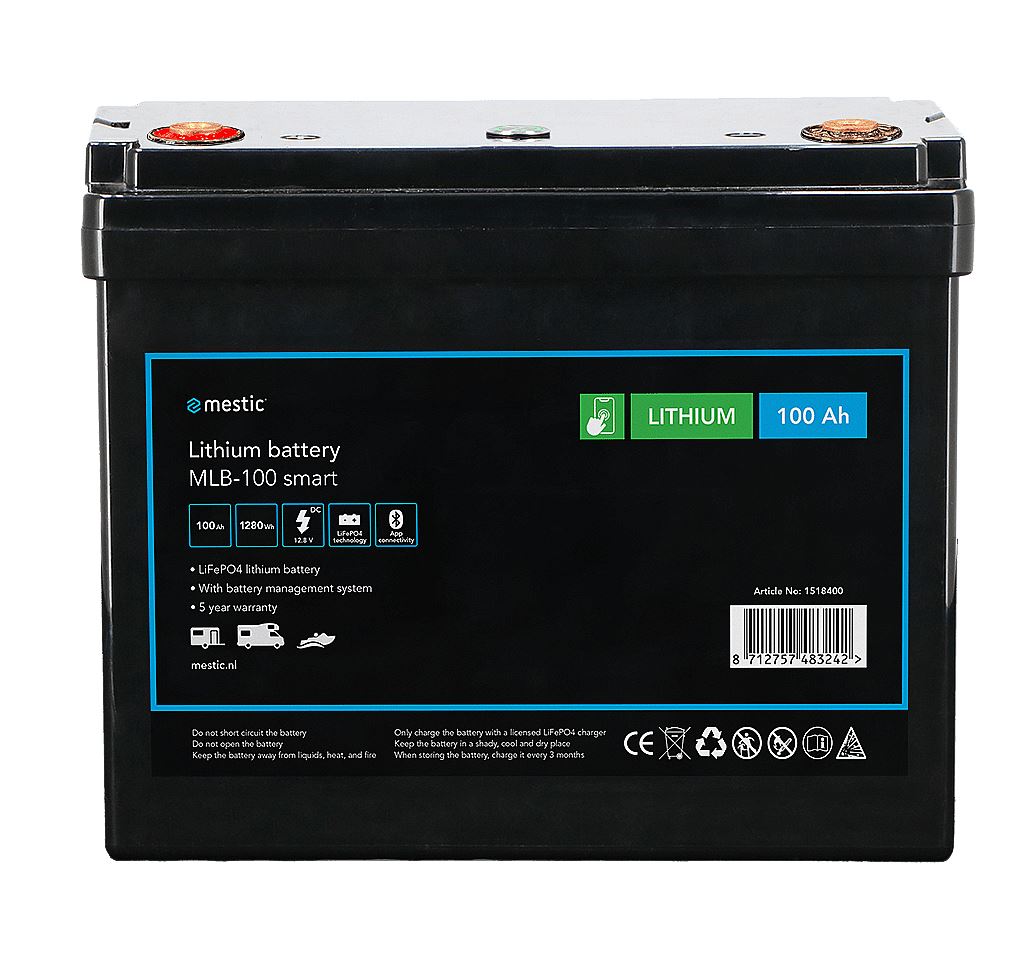

The Mestic MLB-100 Smart at 100Ah is a popular starting point for weekend tourers. It includes a built-in battery management system and smartphone app so you can monitor state of charge, cell balance and system health from your phone. For larger setups, the Mestic MLB-300 Smart at 300Ah provides serious off-grid capacity. Both can be wired in parallel to build larger banks.
Where to Mount Your Battery
Mount your leisure battery in a secure, ventilated location. In a caravan, this is often under a seat or in a dedicated battery box. In a campervan, common locations include under the passenger seat, in a garage area or in a purpose-built compartment. The battery must be fixed securely so it cannot move during travel — a loose battery is a serious safety hazard.
LiFePO4 batteries do not produce hydrogen gas during charging, so they do not need the same level of ventilation as flooded lead acid batteries. However, good airflow around the battery helps manage temperature and prolongs lifespan.
Wiring and Fuse Sizing
Every cable connected to your leisure battery must be appropriately sized for the current it will carry, and protected by a correctly rated fuse. Undersized cables overheat. Missing or incorrectly rated fuses create fire risks.
As a general guide for 12V systems: use 16mm2 cable for runs up to 30A, 25mm2 for runs up to 50A, and 35mm2 or larger for high-current connections like inverters. Keep cable runs as short as possible to minimise voltage drop. Fuse the positive cable at the battery end with a fuse rated slightly above the expected maximum current but below the cable rating.
Label every cable at both ends. This sounds tedious but makes future troubleshooting dramatically easier. A simple label maker or even masking tape and a marker saves hours of tracing wires later.
How to Charge a Leisure Battery
Most caravan and campervan setups use multiple charge sources:
- Solar panels: The most popular off-grid charge source. A 200W panel with an MPPT controller keeps a 100Ah to 200Ah battery topped up during UK summer. For larger banks, scale the solar to match.
- Alternator charging (DC-to-DC): Charges your leisure battery while driving. A DC-to-DC charger is essential for lithium batteries as it provides the correct charge profile. The vehicle alternator alone does not deliver the right voltage for LiFePO4.
- Mains hook-up (240V charger): A dedicated battery charger connected to campsite hook-up provides a reliable top-up. Make sure the charger supports your battery chemistry — lithium batteries need a charger with a LiFePO4 setting.
Using all three charge sources together gives you maximum flexibility: solar while stationary, alternator while driving, and mains when available.
Connecting Your System
The basic connection sequence for a new leisure battery installation is:
- Mount the battery securely in its final position.
- Install a battery isolation switch on the positive cable.
- Connect the negative cable to a common ground point or bus bar.
- Run the positive through an appropriate fuse to your distribution panel or fuse box.
- Connect your charge sources (solar controller, DC-to-DC charger, mains charger) to the battery via appropriately fused cables.
- Connect your loads (lights, fridge, USB sockets) via the distribution panel.
Always disconnect the negative terminal first when removing a battery, and connect it last when installing. Never work on battery connections wearing metal jewellery.
Testing and Monitoring
After completing any battery work, test before closing everything up. Use a multimeter to check voltage at the battery terminals and at each connection point. A fully charged LiFePO4 battery reads approximately 13.4V. Any significant voltage drop between the battery and a connection point indicates a poor crimp, loose terminal or undersized cable.
The Mestic MLB-100 Smart and MLB-300 Smart include app monitoring that shows cell voltages, charge and discharge current, and BMS status. This gives you a known-good baseline and makes ongoing monitoring effortless.
